Project Description

Multisensor cube for recording temperature, humidity, illuminance, air pressure, position and shocks

  • Mobile, self-sufficient radio measuring point with internal sensors

  • Measured value acquisition, intermediate storage (buffering) and radio transmission (min. 128 bit AES encryption)

  • Convenient measured value analysis and data export in the PreonLive online portal my.virtenio.com

  • Runtime up to 3 years with lithium-ion battery

  • Modular compatibility with all Virtenio Cubes and Gateways

  • Robust housing (IP65) with pressure compensation valve

  • Compact dimensions of 65 x 65 x 57 mm (L x W x H)

  • Measurement of temperature, relative humidity, relative illuminance, air pressure, shock and position in 3 axes

Datasheet

Description

The PreonCube Logistics Advanced is a wireless radio monitoring point with internal sensors. Due to its handy and compact design without protruding sensors and the long battery life, the Cube is ideally suited for self-sufficient monitoring of buildings, warehouses, transport containers or hard-to-reach environments. With its sensors, it records data on temperature, relative humidity, relative illuminance, air pressure, shock and position at customer-specific intervals.

Depending on requirements, it transmits these measured values wirelessly to other measuring points or directly to a radio gateway. From the optionally available gateways, the data is transferred to the PreonLive online portal where it can be analyzed and exported. This allows you to monitor your remote PreonCubes from any PC, smartphone or tablet with Internet access and always have an overview of their local environmental conditions.

Sensors

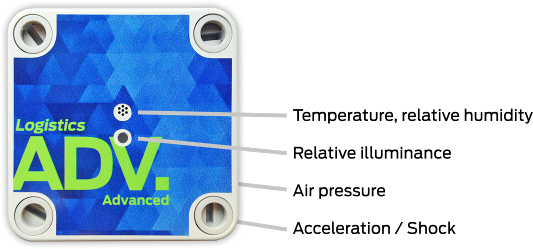

The integrated sensors register the environment around the PreonCube via three housing openings. The PreonCube Logistics Advanced system measures temperature, relative humidity, relative illuminance, air pressure and 3-axis acceleration. The sensor openings are protected according IP65 and are located on the upper side of the housing or above the USB socket from the side.

Applications

  • Areas of application: Buildings, warehousing, transport

  • Usage: Monitoring of buildings, halls, rooms or transport containers

  • Monitoring, verification, control and alarming

    • spot checks or long-term measurements

Technical data

General information
Dimensions 65 x 65 x 57 mm (L x W x H)
Weight 180 g
Case Polycarbonate
Safety class IP65 with pressure compensation valve
Power supply Lithium-ion battery with 2350mAh capacity; USB power supply
Operating modes Battery; power supply with 5V@500mA
Operating time up to 3 years without recharging
Memory Flash, non-volatile
Operating temperature -20°C to +50°C; 0°C to +40°C (power supply operation)
Interaction Non-contact reed switch, LED (two-color)
Connection Micro-USB for PC connection or USB power supply unit
Radio communication
Radio frequency 2.4 GHz, license-free ISM band
Radio standard IEEE 802.15.4
Range (up to) outdoor 300m / indoor 30m
Security at least 128 bit AES
Radio protocol IEEE 802.15.4 (P2P); 6LoWPAN with duty cycling (via SW update)
Radio channels 16
Transmission interval 15 min (standard, programmable)
Temperature
Sensor digital temperature sensor, internal
Measuring interval 15 min (standard, programmable)
Measuring range -20°C to +50°C
Resolution 16-Bit
Accuracy +/- 0.3°C
Relative Humidity
Sensor digital humidity sensor, internal
Measuring interval 15 min (standard, programmable)
Measuring range 0-100% relative humidity
Resolution 12-Bit
Accuracy +/- 2% rH
Relative illuminance
Sensor digital sensor for relative illuminance, internal
Measuring interval 15 min (standard, programmable)
Measuring range 1rlx bis 65355rlx
Resolution 16-Bit
Accuracy +/- 15%, spectrally unadjusted
Air pressure
Sensor digital sensor for air pressure, internal
Measuring interval 15 min (standard, programmable)
Measuring range 260hPa to 1260 hPa
Resolution 24-Bit
Accuracy +/- 0.2 hPa
3-axis acceleration
Sensor Digital acceleration sensor in 3-axes, internal
Measuring interval 15 min (position), max. acceleration over 15 min (event based)
Measuring range +/- 16g per axis
Trigger threshold 4g (initial), is updated up to 16g
Resolution 13-bit per axis
Accuracy 3.9 mg/LSB
Standards
EMV ETSI EN 50371, ETSI EN 60950,ETSI EN 300328, ETSI EN 301489
